自密封式Y型锻造截止阀
时间：2019-11-13 14:57:14 作者：

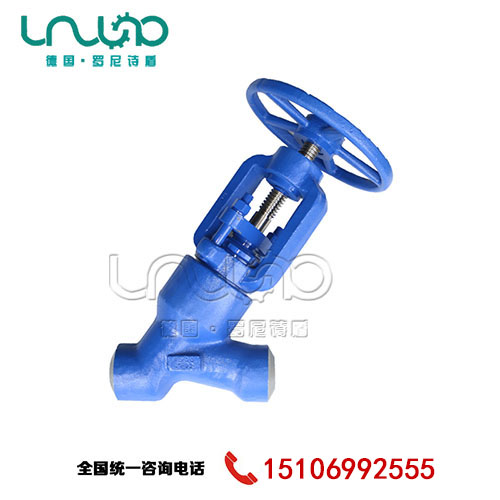

自密封式Y型锻造截止阀
Self-sealing Y-type forged globe valve
应用范围：
- 高温高压系统
- 高冲刷等系统
技术参数：
工作压力：1500LB、2500LB、4500LB
工作温度：65℉(54℃)至1200℉(648℃)
承插焊端：ASME B16.11
对焊端：ASME B16.25
螺纹端：ASME 1.20.1
特点:
- 带推力轴承，扭矩小
- 分体式设计更经济
- 无旋转的阀杆经硬化处理和研磨抛光，减少扭矩，防止填料受到扭
矩损坏；厚度≥1.5mm（0.06）高温真空焊接司太立阀座环；对于热变
化具有很好的抵抗力；
- 材质可选：A105、F36H、F91、F92、WB36
- 可提供大于2的阀门，并可配气动、电动执行器
- 最大可做4"口径
Applications
- High temperature and pressure system
- High flush system
Specifications
- Working pressure: 1500LB、2500LB、4500LB
- Working temperature: 65℉(54℃) to 1200℉(648℃)
- SW connection:ASME B16.11
- SW connection：ASME B16.25
- Thread connection：ASME 1.20.1
Features
- With thrust bearing and low torque;
- More economical with split design
- Non-rotaing stem with hardened and polished to reduce
operation torque and protect packing from torque damage;
- Thickness≥1.5mm（0.06）high temperature vacuum welding
stellite seat ring;For thermal distortion,it has good
resistance;
- Available material:A105、F36H、F91、F92、WB36
- Size>2 also can be provided
- Available type: pneumatic and electric actuators
- Size>4 also can be provided
